Copper Nickel
UNS C70600 - UNS C7060X - UNS C71500 - C71640
CuNi 90/10 & CuNi 70/30 Plate/Sheet

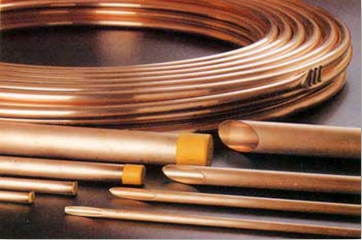

CuNi 90/10 & CuNi 70/30 Seamless & Welded Tube
CuNi 90/10 & CuNi 70/30 Seamless & Welded Pipe
CuNi 90/10 & CuNi 70/30 Round Bar
CuNi 90/10 & CuNi 70/30 Flanges
CuNi 90/10 & CuNi 70/30 Seamless & Welded BW Fittings
General Copper Nickel information
Cu-Ni alloys are alloys of copper (base metal with the largest individual content) and nickel with or without other elements,
whereby the zinc content may not be more than 1%. When other elements are present, nickel has the largest individual content
after copper, compared with each other element. As with other copper alloys, it is necessary to distinguish between wrought
alloys, which are processed to semi-finished products, and cast alloys, from which castings are produced by various casting
processes. The Cu-Ni alloys with additions of manganese are important in electrical engineering. Additions of iron significantly
improve the resistance of Cu-Ni alloys to erosion corrosion in flowing seawater and other aggressive waters.
Copper Nickel Applications
Desalination
Seawater Piping Systems
Copper Nickel Corrosion Resistance
Copper alloys have very good resistance to seawater, brine water, organic compounds, salts, diluted non-oxidizing acids, and more.
CuNi 90/10 (C70600 & C7060X) is a Copper Nickel Iron alloy with a small content of manganese which allows excellent resistance to
sea- and brakish water. Of all commercial coper alloys, CuNi 70/30 (C71500) offers the best resistance to aqueous corrosion. It is
resistant to acid solutions and highly resistant to stress corrosion cracking, and impingement corrosion. In addition, CuNi70/30
offers a greater strength for higher pressures.
Copper Nickel Heat Resistance
The hot strength of copper increases with only a small addition of nickel. By adding iron, mechanical properties are improved,
not only at room temperature, but also at elevated temperatures. 10% Ni. CuNi10Fe1Mn, for example, can be used in pressure vessel
construction up to 300°C, CuNi30Mn1Fe up to 350°C. Above these limit temperatures, strength drops markedly, particularly the creep
strength and creep strain limit.
Copper Nickel Heat Treatment
In general, heat treatments are only used with Cu-Ni alloys for soft annealing and stress relieving Temperatures for
recrystallisation annealing can vary over wide limits between about 620 and 900°C, depending on degree of cold work, nickel
content and additional constituents. High temperatures are associated with short annealing times (continuous annealing) and
low temperatures with long annealing times (static annealing). Stress-relief annealing is carried out at 280 to 500°C. It is
advisable to anneal excluding air or in a slightly reducing atmosphere, to avoid the pickling that is required with air-containing
annealing atmospheres.
Guide to selection of tube materials
Sea Water
Dissolved salts from 1500 to 3000 ppm
Suspended solids more than 25 ppm
H2S or Ammonia less than 1 ppm
Permissible average velocity of water 3.0–4.0 meter / sec.
Product Applications areas
Chillers
Heat Exchangers & Condensers
Power Plants
Refineries
Desalination Plants
Ship Building & Ship Repairs
Defense
Chemical Composition & Mechanical Properties
| Trade Name | UNS | Copper Nickel Industry Spec. | Chemical Composition | Min. Tensile (KSI) | Min. Yield (KSI) | Elong. % |
| CuNi 90/10 | UNS C70600 UNS C70620 | ASME SB111, SB171, SB359, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu 88.6 min |
38 | 15 | 30 |
| CuNi 90/10 | UNC C7060X | EEMUA 144 90/10, 145 90/10, 14 90/10 | Cu rem. Pb 0.01 max Fe 1.5 - 2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10 - 11 Mn 0.5 - 1.0 |
40 | 15 | 30 |
| CuNi 70/30 | UNS C71500 UNS C71520 | ASME SB111, SB171, SB359, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu rem (65.0 min) PB 0.05 max* Fe 0.4 - 1.0 Zn 1 max* Ni 29 - 33 Mn 1.0 max |
52 | 18 | 45 |
| CuNi 70/30 | UNS C71640 | ASTM B111, B543, B552 | Cu rem PB 0.05 max* Fe 1.7 - 2.3 Zn 1 max* Ni 29 - 32 Mn 1.5 - 2.5 |
63 | 25 | - |
Copper Nickel Pipes - European Standards
| Main Std | NFA | GAM | BS | EEMUA | NES | DIN | EN | ASTM |
| Seamless Pipes CuNi10 Fe1 Mn |
51102 | MM 11 | 2871 CN 102 | 144 UNS 7060X | 779 part 3 | 86019 2.1972 17664/17996 2.0872 | 12449 CW352 H | B466 C70600 |
| Seamwelded Pipes CuNi10 Fe1 Mn | 2875 CN 102 | 144 UNS 7060X | 86018 2.1972 17664/17996 2.0872 | B467 C70600 | ||||
| Bars CuNi10 Fe1 Mn |
MM 11 MM 13 | 2872 CN 102 2874 CN 102 |
779 part 2 | 17664 2.0872 17672 2.0872.10 | B151 C70600 B249 |
|||
| Plates CuNi10 Fe1 Mn |
2870 CN 102 2875 CN 102 |
B171 C70600 B402 |
||||||
| Seamless Pipes CuNi30 Fe1 Mn |
51102 | MM 11 | 2871 CN 107 | 780 part 3 | 17664 2.0882 17671/1755 |
12449 CW352 H | B466 C71500 | |
| Seamwelded Pipes CuNi30 Fe1 Mn | 2875 CN 107 | 17664 2.0882 17670 2.0882/86018 |
B467 C71500 | |||||
| Bars CuNi30 Fe1 Mn |
2872 CN 107 2874 CN 107 |
17664 2.0872 17672 2.0872.10 | B151 C71500 B249 |
|||||
| Plates CuNi30 Fe1 Mn |
2875 CN 107 | B171 C71500 B402 |
