Fittings

Reliable Steel Distributors. can supply a wide variety of fittings for gas and fluid pipework systems, either as a package alongside the appropriate flanges (see appropriate product page) or on a stand alone basis.

The most common types of pipework fittings sought are as follows

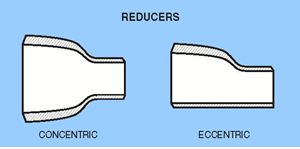

Reducers

A reducer is used in pipeline configurations when it is necesary to reduce the bore or internal pipe size. The length of the reduction is usually equal to the average of the larger and smaller pipe diameters.

There are two main types of reducer: concentric (flow is reduced evenly from the larger to smaller diameter) and eccentric (reducer is shaped with one straight and one reducing edge) reducers.

A reducer can be used either as nozzle or as diffuser depending on the original speed and desired of the flow.

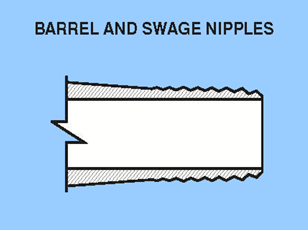

Barrel & Swage Nipples

Like reducers, swage nipples are used to constrict the flow in pipework systems, however swage nipples are usually longer than reducers, and are used more extensively in higher pressure applications.

The swage's bore usually matches that of the pipe onto which they are fitting, although it is possible to have different bores/wall thicknesses/schedules as appropriate to meet the requirements of the pipework configuration and flow requirements.

The swage ends can be plain (one or both ends), threaded (one or both ends), bevelled if a weld is to be used to strengthen the connection (again, one or both ends), or a combination thereof.

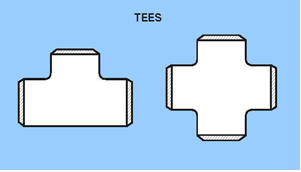

Tees

A tee is the most common and most flexibly supplied pipe fitting – being used to combine or split flows securely amongst three or four branch pipes.

Tees commonly are T-shaped with two outlets at 90° to the connection to the main line, or three outlets (two at 90° and one at 180° to the main line) and are categorized as

• Equal – used where the size of the branch is same as the header pipe
• Unequal – used where the branch size is less than that of header size

Tees can be supplied with female thread sockets/weld sockets/or with opposed weld sockets and side outlet(s) with female threads and Allloy Flanges & Fittings will be pleased to advise on the most suitable to use (based on their shapes and structure) from: Straight Tee, Reducing Tee, Double Branch Tee, Double Branch Reducing Tee, Conical Tee, Double Branch Conical Tee, Bullhead Tee, Conical Reducing Tee, Double Branch Conical Reducing Tee, Tangential Tee, and Double Branch Tangential Tee.

Tees are sized according to a standard nomenclature of “end” x “end” x “centre”. So if you want a tee that is 1" on both ends and 3/4" in the centre it would be classed as a 1" x 1" x 3/4" tee.

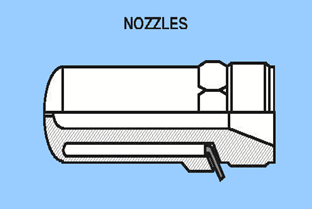

Nozzles

Nozzles are used to control the direction of the flow within a pipe configuration or to change or control the rate of flow within the pipework (especially to increase the velocity or pressure of flow pre/post nozzle).

Elbows

An elbow is a fitting installed between two lengths of pipe to create a change of direction of the flow of the pipework to avoid obstacles or make best use of space available.

The following types of elbows are typically available

• Long Radius (LR) Elbows – radius is 1.5 times the pipe diameter
• Short Radius (SR) Elbows – radius is 1.0 times the pipe diameter
• 90 Degree Elbow – sometimes called a quarter bend - where change in direction required is 90°
• 45 Degree Elbow – where change in direction required is 45°
• 22.5° Degree Elbow - where change in direction required is 22.5°

The ends of the elbow can be machined for butt welding, threaded (usually female), or socketed.

When the ends of the two pipes differ in size, the fitting is called a reducing elbow.

Most elbows are available in short radius or long radius variants. The short radius elbows have a center-to-end distance equal to the Nominal Pipe Size (NPS) in inches, while the long radius is 1.5 times the NPS in inches.

Short Radius elbows are typically used in pressurized systems, while Long Radius elbows are typically used in low-pressure gravity-fed systems and other applications where low turbulence and minimum deposition of entrained solids are of concern.

Plugs

A plug closes off the end of a pipe. It is similar to a cap but it fits inside the fitting it is mated to. Plugs can have a threaded end to ensure a tight fit into the pipe end, but be capable of removal should the configuration change.

Alloy Flanges & Fittings can supply fittings in a wide variety of materials, including stainless (such as 304, 316 and 321), duplex/super duplex (e.g. F44, F51, F53, F55), nickel alloys (including alloy 625, alloy 718), Titanium (grade 2 and 5), high yield carbon steel and 6 Moly steel.

Fitting are supplied to ANSI/ASME B16 (standards of pipes and fittings) and the appropriate dimensional specification (of the 49 covered in the standard, for example

• ASME/ANSI B16.5 for pipe flanges and flange fittings which covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings for flanges with rating class designations 150, 300, 400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24
• ASME/ANSI B16.9 which covers overall dimensions, tolerances, ratings, testing, and markings for wrought factory-made butt-welding fittings in sizes NPS 1/2 through 48 (DN 15 through 1200)
• ASME/ANSI B16.11 which covers ratings, dimensions, tolerances, marking and material requirements for forged fittings - both socket-welding and threaded).

ASTM B366 WPN	ASTM B366 WPHG3	ASTM B366 WPVB4	Monel R-405 UNS N04405
ASTM B366 WPNL	ASTM B366 WP20CB	ASTM B366 WPHB2	Incoloy 800H UNS N08810
ASTM B366 WPNC	ASTM B366 WP904L	ASTM B366 WPHB3	Incoloy 800HT UNS N08811
ASTM B366 WPHX	ASTM B366 WP3127	ASTM B366 WPH160	Incoloy 825 UNS N08825
ASTM B366 WPHC 22	ASTM B366 WPH120	ASTM B366 WP3033	Inconel 718 UNS N07718
ASTM B366 WPV602	ASTM B366 WP330	ASTM B366 WPH556	Inconel Alloy 600 UNS N06600
ASTM B366 WPHG30	ASTM B366 WP6XN	Nickel alloy 200 UNS N02200	Inconel Alloy 601 UNS N06601
ASTM B366 WPHG35	ASTM B366 WPNIC	Nickel alloy 201 UNS N02201	Inconel Alloy 625 UNS N06625
ASTM B366 WPV45TM	ASTM B366 WPNIC10	Hastelloy C-276 UNS N10276	Alloy 20 UNS N08020
ASTM B366 WP5923	ASTM B366 WPNIC11	Hastelloy X UNS N06002	AL-6XN UNS  N08367
ASTM B366 WPHC2000	ASTM B366 WPNICMC	Hastelloy C-22 UNS N06022	Hastelloy G UNS N06007
ASTM B366 WPM21	ASTM B366 WP1925	Hastelloy B-2 UNS  N010665	Alloy 602 CA UNS N06025
ASTM B366 WPH230	ASTM B366 WP2120	Hastelloy B-3 UNS N010675	Alloy 59 UNS N06059
ASTM B366 WPHC4	ASTM B366 WP1925N	Hastelloy Hybrid BC1,	Hastelloy C-2000 UNS N06200
ASTM B366 WPNCI	ASTM B366 WPHB	Hastelloy C-4 UNS N26455	Haynes Alloy 230 UNS N06230
ASTM B366 WP603GT	ASTM B366 WPHN	Hastelloy C-22HS	Super Alloy Inconel 686 UNS N06686
ASTM B366 WPNCMC	ASTM B366 WPH242	Hastelloy G-35 UNS N06035	Hastelloy G-30 UNS N06985
ASTM B366 WPIN686	ASTM B366 WPHC276	Monel Alloy 400 UNS N04400	Alloy 31 UNS N08031
ASTM B366 WP626SI	ASTM B366 WPB10	Monel alloy K-500 UNS N05500	Super Alloy Incoloy Alloy 330 UNS N08330



Grades for Fittings & Flanges

A105	A181	A182	A193	A194	A234	A320	A350	A403
	A181 class 60	A182 F1	A193 B5	1	A234 WPB	A320 L7	A350 Grade LF1	A403 WPXM-19
	A181 class 70	A182 F2	A193 B6	2	A234 WPC	A320 L7A	A350 Grade LF2	A403 WP304
		A182 F5	A193 B6X	2HM	A234 WP1	A320 L7B	A350 Grade LF3	A403 WP304L
		A182 F5a	A193 B7	2HM	A234 WP12 CL1	A320 L7C	A350 Grade LF5	A403 WP304H
		A182 F9	A193 B7M	4	A234 WP12 CL2	A320 L70	A350 GradeLF6	A403 WP304N
		A182 F10	A193 B16	3	A234 WP11 CL1	A320 L71	A350 Grade LF9	A403 WP304LN
		A182 F91	A193 B8	6	A234 WP11 CL2	A320 L72	A350 Grade LF787	A403 WP309
		A182 F92	A193 B8A	6F	A234 WP11 CL3	A320 L73		A403 WP310S
		A182 F122	A193 B8C	7	A234 WP22 CL1	A320 L43		A403 WPS31254
		A182 F911	A193 B8CA	7M	A234 WP22 CL3	A320 L7M		A403 WP316
		A182 F11 Class 1	A193 B8M	8	A234 WP5 CL1	A320 L1		A403 WP316L
		A182 F11 Class 2	A193 B8MA	8A	A234 WP5 CL3	A320 B8		A403 WP316H
		A182 F11 Class 3	A193 B8M2	8C	A234 WP9 CL1	A320 B8A		A403 WP316N
		A182 F12 Class 1	A193 B8M3	8CA	A234 WP9 CL3	A320 B8C		A403 WP316LN
		A182 F12 Class 2	A193 B8P	8M	A234 WPR	A320 B8CA		A403 WP317
		A182 F21	A193 B8PA	8MA	A234 WP91	A320 B8T		A403 WP317L
		A182 F 3V	A193 B8N	8T	A234 WP911	A320 B8TA		A403 WPS31725
		A182 F3VCB	A193 B8NA	8TA		A320 B8PA		A403 WPS31726
		A182 F22 Class 1	A193 B8MN	8F		A320 B8F		A403 WPS31727
		A182 F22 Class 3	A193 B8MNA	8FA		A320 B8FA		A403 WPS32053
		A182 F22V	A193 B8MLNCuN	8P		A320 B8M		A403 WP321
		A182 F23	A193 B8MLNCuNA	8PA		A320 B8MA		A403 WP321H
		A182 F24	A193 B8T	8N		A320 B8A320 LN		A403 WPS33228
		A182 FR	A193 B8TA	8NA		A320 B8A320 LNA		A403 WPS34565
		A182 F 36 Class 1	A193 B8R	8LN		A320 B8MA320 LN		A403 WP347
		A182 F36 Class 2	A193 B8RA	8LNA		A320 B8MA320 LNA		A403 WP347H
		A182 F6a Class 1	A193 B8S	8MN		A320 B8P		A403 WP348
		A182 F6a Class 2	A193 B8SA	8MNA				A403 WP348H
		A182 F6a Class 3	A193 B8LN	8MLN				A403 WPS38815
		A182 F6a Class 4	A193 B8LNA	8MLNA
		A182 F6b	A193 B8MLN	8R
		A182 F 6NM	A193 B8MLNA	8RA
		A182 FXm-27 Cb		8S
		A182 F429		8SA
		A182 F430		8MLCuNA
		A182 F304		9C
		A182 F304H		9CA
		A182 F304L		16
		A182 F304LN
		A182 F309H
		A182 F310
		A182 F310H
		A182 F310MoLN
		A182 F316
		A182 F316H
		A182 F316L
		A182 F316N
		A182 F316LN
		A182 F31Ti
		A182 F317
		A182 F317L
		A182 S31727
		A182 S32053
		A182 F347
		A182 F347H
		A182 F348
		A182 F348H
		A182 F321
		A182 F 321H
		A182 F XM-11
		A182 F XM-19
		A182 F 20
		A182 F 44
		A182 F45
		A182 F46
		A182 F47
		A182 F48
		A182 F49
		A182 F56
		A182 F58
		A182 F62
		A182 F63
		A182 F64
		A182 F 904 L
		A182 F 50
		A182 F 51
		A182 F 52
		A182 F 53
		A182 F 54
		A182 F 55
		A182 F57
		A182 F59
		A182 F60
		A182 F61
		A182 F65
		A182 F66
		A182 F67

A420	A437	A453	A522	A540	A694	A707	A727	A733	A758
A420 WPL6	A437 Grade B4B	A453 GRADE 660	A522 Type 1	A540 B21	A694 F42	A707 L1			A758 Grade 60
A420 WPL9	A437 Grade B4C	A453 GRADE 651	A522 Type 2	A540 B22	A694 F46	A707 L2			A758 Grade 70
A420 WPL3	A437 Grade B4D	A453 GRADE 662		A540 B23	A694 F48	A707 L3
A420 WPL8		A453 GRADE 665		A540 B24	A694 F50	A707 L4
		A453 GRADE 668		A540 B24V	A694 F52	A707 L5
					A694 F56	A707 L6
					A694 F60	A707 L7
					A694 F65	A707 L8
					A694 F70

A774	A815	A836	A858	A860	A988	B363	B366	B381
A774 TP 304L	A815 WP27	A836 CLASS 1		A860 WPHY 42	A988 S41000	B363 WPT1	B366 WPN	B381 F-1
A774 TP 316L	A815 WP33			A860 WPHY 46	A988 S41026	B363 WPT2	B366 WPNL	B381 F-2
A774 TP 317L	A815 WP429			A860 WPHY 52	A988 S41500	B363 WPT2H	B366 WPNCᶜ	B381 F-2H
A774 TP 321	A815 WP430			A860 WPHY 60	A988 S42390	B363 WPT3	B366 WPHX	B381 F-3
A774 TP 347	A815 WP430TI			A860 WPHY 65	A988 S30400	B363 WPT7	B366 WPHG	B381 F-4
	A815 WP446			A860 WPHY 70	A988 S30403	B363 WPT7H	B366 WPHC22	B381 F-5
	A815 WPS31803				A988 S30451	B363 WPT9	B366 WPV602	B381 F-6
	A815 WPS32101				A988 S30453	B363 WPT11	B366 WPHG30	B381 F-7
	A815 WPS32202				A988 S31600	B363 WPT12	B366 WPHG35	B381 F-7H
	A815 WPS32750				A988 S31603	B363 WPT13	B366 WPV45TM	B381 F-9
	A815 WPS32950				A988 S31651	B363 WPT14	B366 WP2120	B381 F-11
	A815 WPS32760				A988 S31653	B363 WPT15	B366 WP5923	B381 F-12
	A815 WPS39274				A988 S31700	B363 WPT16	B366 WPHC2000	B381 F-13
	A815 WPS32550				A988 S31703	B363 WPT16H	B366 WPM21	B381 F-14
	A815 WPS32205				A988 S21904	B363 WPT17	B366 WPH230	B381 F-15
					A988 S31254	B363 WPT18	B366 WPHC4	B381 F-16
					A988 S31725	B363 WPT19	B366 WPNCI	B381 F-17
					A988 S31726	B363 WPT20	B366 WP603GT	B381 F-18
					N08367	B363 WPT21	B366 WPNCMC	B381 F-19
					A988 S32654	B363 WPT23	B366 WPIN686	B381 F-20
					A988 S17400	B363 WPT24	B366 WP626Si	B381 F-21
					A988 S321803	B363 WPT25	B366 WPHG3	B381 F-23
					A988 S32205	B363 WPT26	B366 WP20CB	B381 F-24
					A988 S32950	B363 WPT26H	B366 WP3127	B381 F-25
					A988 S32750	B363 WPT27	B366 WPH120	B381 F-26
					A988 S39274	B363 WPT28	B366 WP330	B381 F-26H
					A988 S32760	B363 WPT33	B366 WP6XN	B381 F-27
					A988 S39277	B363 WPT34	B366 WPNIC	B381 F-28
					A988 S32505	B363 WPT35	B366 WPNIC10	B381 F-29
						B363 WPT36	B366 WPNIC11
						B363 WPT37	B366 WPNICMC
						B363 WPT38	B366 WP904L
							B366 WP1925
							B366 WP1925N
							B366 WPHB
							B366 WPHN
							B366 WPH242
							B366 WPHC276
							B366 WPB10
							B366 WPVB4
							B366 WPHB-2
							B366 WPHB-3
							B366 WPH160
							B366 WP3033
							B366 WPH556

B462	B564	B637
B462 UNS N08026	B564 N02200	B637 UNS N07252
B462 UNS N08020	B564 N02201	B637 UNS N07001
B462 UNS N08024	B564 N04400	B637 UNS N07500
B462 UNS N08367	B564 N06002	B637 UNS N07750
B462 UNS R20033	B564 N06007	B637 UNS N07718
B462 UNS N06030	B564 N06022	B637 UNS N07080
B462 UNS N06022	B564 N06025	B637 UNS N07752
B462 UNS N06200	B564 N06030	B637 UNS N09925
B462 UNS N10276	B564 N06035	B637 UNS N07725
B462 UNS N10665	B564 N06045
B462 UNS N10675	B564 N06058
B462 UNS N06059	B564 N06059
B462 UNS N06686	B564 N06200
B462 UNS N08031	B564 N06210
B462 UNS N06045	B564 N06230
B462 UNS N06025	B564 N06455
B462 UNS N10629	B564 N06600
B462 UNS N06035	B564 N06603
	B564 N06625
	B564 N06686
	B564 N06219
	B564 N06985
	B564 N08020
	B564 N08031
	B564 N08120
	B564 N08330
	B564 N08367
	B564 N08800
	B564 N08810
	B564 N08811
	B564 N08825
	B564 N08904
	B564 N08925
	B564 N08926
	B564 N10001
	B564 N10003
	B564 N10242
	B564 N10276
	B564 N10624
	B564 N10629
	B564 N10665
	B564 N10675
	B564 N12160
	R20033
	R30556
